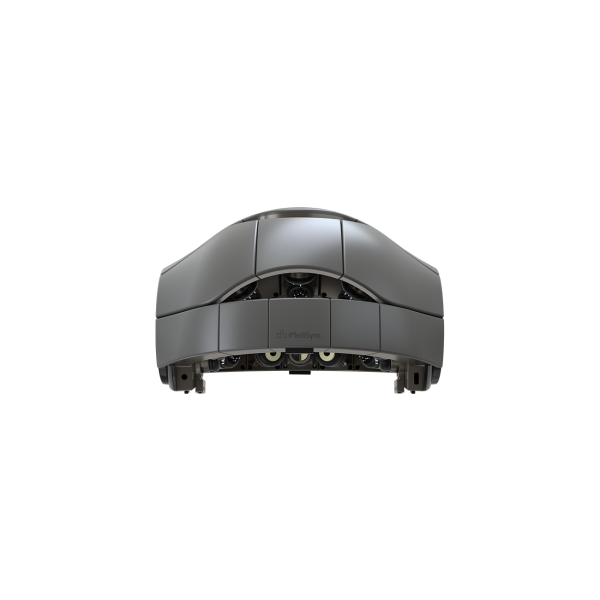

iSyncMe 20 Channel Dry Electrode qEEG Headset with Android Tablet

iSyncMe is a soft-fitting, expandable, wireless, dry EEG headset with Near-Infrared Photobiomodulation. Slightly smaller than the iSyncWave, iSyncMe offers improved signal quality accuracy with lighter weight and enhanced PBM performance.

Call us for more information, or to purchase iSyncMe

• Seamlessly integrates with iSyncBrain, iMediSync’s AI integrated qEEG software package.
• Soft-fitting and expandable for all head sizes aged 6+
• Data is sent wirelessly to a tablet [included] via Bluetooth and then to the cloud for easy access anywhere at any time.
• Quick and user-friendly. No paste and no head measurements, so any person can get a quality recording.
• Built using Rack-Pinion Structures to ensure 10-20 international system placement every time

iSyncBrain Capabilities:

• App connected web interface for max usability
• Super time saving AI denoising for clinicians and for researchers
• Visualized brain mapping report First-ever sex classified norm comparison
• 3D interactive viewer
• 3D rendering of voxel power and ROI connectivity with each frequency band, respectively
• Major disease brain biomarker report

Silver Report Package

This is a general qEEG report. The EEG data that is utilized in this report is automatically denoised using both general methods such as frequency filtering and epoch rejection, but also uses AI-informed component removal. Many sections on this report provide links to research articles which describe the importance of various features in a qEEG map.

Pre-Processing and Auto-Denoising

Includes filtering, noisy epoch rejection (either in auto or in manual), and automatic removal of noisy or drowsy epochs and independent components using AI.

Adaptive Mixture Independent Component Analysis (AMICA)

Advanced ICA using cloud services for quick and accurate components.

Surface Level Analysis

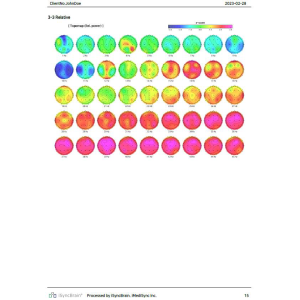

Absolute and Relative Topomaps. Can be displayed in 8 band ranges or in 1Hz bins (1 to 45Hz). Absolute and Relative Power Spectrum Density Chart and Alpha Peak Frequencies at O1 and O2. Ratio Topomaps: Theta-Beta Ratio, Theta-Alpha Ratio, Delta Alpha Ratios are included.

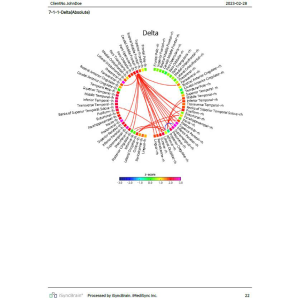

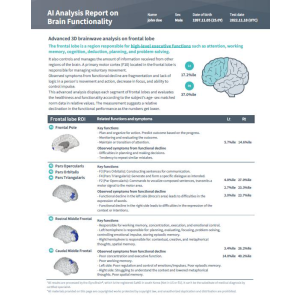

Sample Basic Report

Using the iSyncMe Headset

• IsyncMe Headset
• Choice of Silver or Gold Report Packages
• Android Tablet

Manuals and Data Sheets

iSyncMe User Manual

iSyncMe Warranty Information

Silver Report Package - qEEG Sample Report

Specifications

Size

• Weight: 1200 g
• Dimensions: 235(L) x 225(W) x 149(H) mm
• Head Circumference: 41.5 cm – 64.2 cm

Channels

• EEG: 19 EEG Channels + 1 Fpz Ground Channel
• Auxiliary: Fpz Channel: PPG Ground / Right: No Channel / Left: Ref Channel
• EEG Electrode: Dry-Type Ag/AgCl-Coated Conductive Polymer

Power

• Battery: Rechargeable Li-Ion Battery
• Charging: USB-C Type with 5V/2A Adapter
• Charging Time: 90 Min
• Runtime: 7 Hours

Amplifier

• Bandwidth: 0.5 – 50 Hz
• Sampling Rate: 250 Hz
• Special Design: Analog Front End (AFE)
• A/D Converter: 24 Bit

Connectivity

• Bluetooth: Bluetooth v5.1 (LE up to 2Mbps)

LED

• Irradiance Source: 19 LED Bulbs (Built-in the center of each EEG electrode)
• Wavelength: Near-Infrared 850 nm
• Pulse Rate: 1 – 45 Hz (Adjustable in 1Hz Increments)
