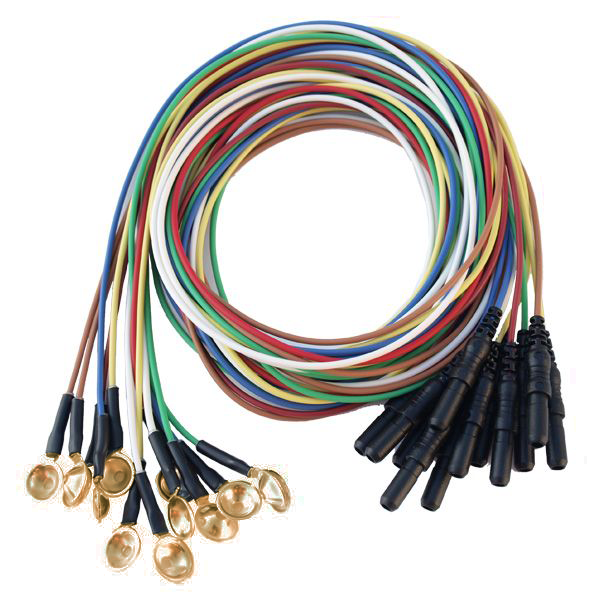

Technomed Gold Cup EEG Electrodes - 12 pack multi-color
- Clear and reliable signal
- 10 mm silver cup electrodes with 40 inch tangle free wires
- Optimized connector design for easy headbox insertion and extraction
- Optimal patient comfort with low profile disk, soft and flexible anti-tangle lead wires
Technomed’s Reusable EEG Cup Electrode Gold and Silver are designed to provide reliable signals and longtime ease of use. 12 per pack (2 of each: Red, Green, White, Yellow, Blue, Brown) 1.5mm DIN. Approximately (1 meter) 40 inches in length.
These electrodes are designed for easy adjustment to patient contours to avoid electrode lift. The connector is optimized for easy headbox insertion and extraction.
Reusable cup electrodes designed to provide effectiveness, ease of use and reliable signals every time.
Precision stamped silver (Ag), adult 10 mm cup with 40 inch tangle-free lead wire and DIN 42 802 connector. Two leads of each color Red, Green, White, Yellow, Blue, Brown.
2 x 6 Colors: red, green, white, yellow, blue, brown
Cleaning and desinfection: see IFU for details
|Cup||Gold or Silver plating|
|DEHP < 0.1% by weight||Y|
|REACH & RoHS compliant||Y|
|Lead wire design||Tinsel wire|
|Lead wire core||Kevlar and Silver Plated Copper|
|Lead wire insulation||TPU|
|Spring loaded connector||Gold Plated Brass / PVC|
