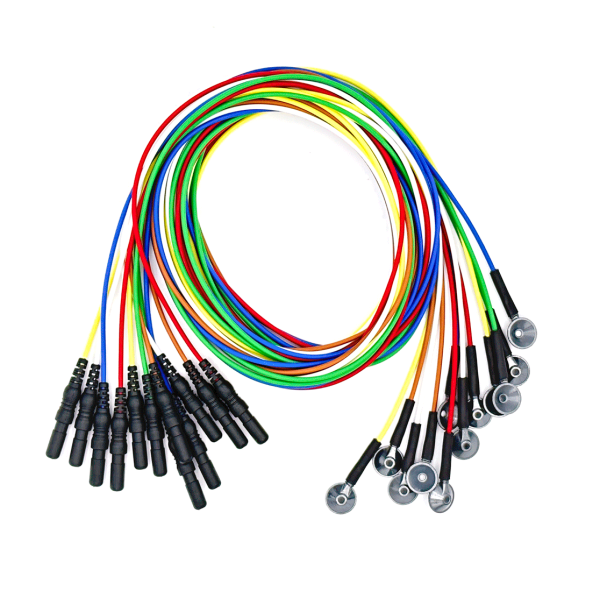

Technomed Silver/Silver Chloride Cup EEG Electrodes - 12 pack multi-color

Be the first to review this product

10 mm cup electrodes with 40 Inch tangle-free wires
Optimized DIN connector design for easy headbox insertion and extraction
Low-noise, frequency-stable Ag/AgCl layer for clear and reliable recordings

Our Part #

TNO SSCILCUP-12

Manufacturer Part #

TE/C22-434/99

In Stock

was $180.00 Special Price $162.00

Description

Silver/Silver Chloride 10 mm EEG cup electrodes with soft, tangle-free lead wires and a 1.5 mm safety DIN 42802 touch-proof connector. 1 meter (~40 inches). 12-lead set in six colors, two of each: red, green, white, yellow, blue, brown.

Technomed Silver/Silver Chloride Cup EEG Electrodes are a practical, clinic-proven choice when you want consistent signals from a reusable lead set. Each pack includes 12 leads (two each in six colors) with 10 mm cups and 1.5 mm (DIN 42802) touch-proof connectors, so they drop straight into most headboxes without any adapter trouble. The 40 inch (1.0 m) leads are long enough for common cap and paste setups, but short enough to keep cable management orderly.

The color-coded set of 12 makes both placement and inventory painless, and the silver/silver chloride-plated cups provide the familiar performance profile practitioners expect for routine EEG and neurofeedback.

Technomed Electrodes are built for low-artifact work. They're designed with a "no-lift" cup that fits the scalp, a soft tangle-resistant lead for easier head movement, and a connector shaped for quick headbox swaps. Inside, Kevlar-reinforced tinsel with TPU insulation in a watertight assembly stands up to real-world use and cleaning.

Technomed Silver/Silver Chloride Cup EEG Electrode Key Benefits

Low-profile cup/neck design to minimize lift
Optimized DIN connector for easy headbox insertion
Tangle-free, Kevlar-reinforced wires
Watertight construction for long lead life
Color-coded 12-lead set for straightforward placement and inventory

Technical Specifications

Cup material: Silver/Silver Chloride (Ag/AgCl)
Cup diameter: 10 mm
Lead length: 1 m (≈40")
Connector: 1.5 mm safety touch-proof, DIN 42802/42802-1
Lead construction: Tinsel wire; Kevlar + silver-plated copper core; TPU insulation
Packaging: 12 per pack, 2 x 6 colors (red, green, white, yellow, blue, brown)
Compliance & materials: Not made with natural rubber latex; lead-free; DEHP-free leadwire; REACH & RoHS compliant
