Thought Technology Heart Rate Variability Intermediate Bundle

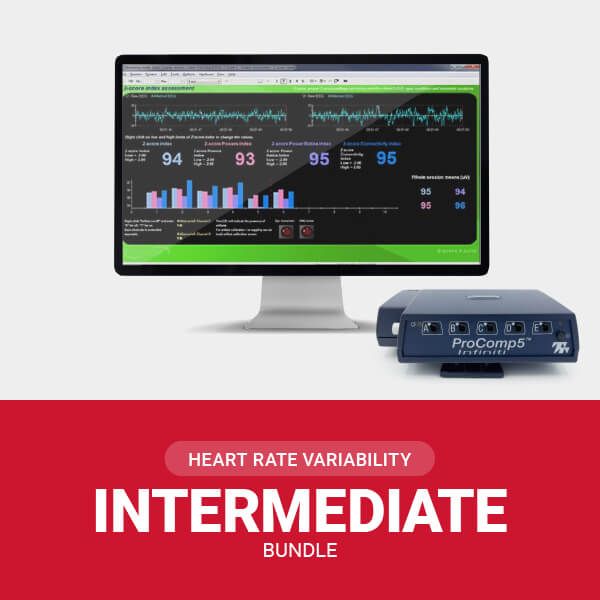

The HRV Intermediate System comes with the 5-channel ProComp 5 and all the software tools you need to record key peripheral physiology with the HRV measures.

Heart rate variability is created by the interplay of many physiological processes but most HRV systems on the market only monitor heart rate. The HRV Intermediate System gives you a much broader perspective on the physiology of HRV, with the mid-range ProComp 5 encoder and physiological sensors, which include respiration, skin conductance, peripheral temperature, and your choice of heart rate sensors (BVP or EKG).

Bundles Comparison Sheet (opens in new tab).

What’s Included?

Encoder

ProComp5 Infiniti Encoder T7525 -  5 Channel - ProComp5 Infiniti is housed in an ergonomically-designed case and requires only a USB port to connect to any IBM compatible PC. ProComp5 Infiniti has the identical inputs as ProComp Infiniti, but omits the last 3 channels. The first two sensor channels provide ultimate signal fidelity (2048 samples per second) for viewing raw EEG, SEMG, EKG and heart rate, blood volume pulse signals, while the remaining 3 channels sample data at 256 samples/second for slower signals such as respiration, temperature, force, etc. Not only can ProComp5 Infiniti capture data in real time by connecting directly to the PC via its fiber-optic cable, but it can also store data on a Compact Flash memory card for uploading later to the PC, or use optional long-range compact flash module telemetry anytime it is desirable.

Software

BioGraph Infiniti Software - BioGraph Infiniti Software is the core of all our Biofeedback and Psychophysiology products. It provides a multimedia rich graphical experience, while capturing and analyzing raw data. It also includes all the features and functions required to run our specialized application Suites.

Suites

360 Suite - The suite combines classic physiological biofeedback (arousal and peripheral temperature) with heart rate variability training (HRV) and neurofeedback protocols (EEG biofeedback) into one integrated package. The suite’s broad selection of tools includes:

• Specialized physiological assessments
• Self-regulation training screens
• Biofeedback assisted relaxation therapy sessions

Sensors

Skin Conductance Sensor SA9309M - The Skin Conductance sensor measures the galvanic skin response, and is normally connected to the fingers or toes. Includes two finger bands.

Temperature Sensor SA9310M - The Temperature sensor measures skin surface temperature between 10°C – 45°C (50°F - 115°F ). It is supplied with a self adhering band for easy finger placement.

Respiration Sensor SA9311M - Respiration Sensor includes a sensitive and repeatable girth sensor using an easy fitting high durability latex rubber band fixed with self-adhering belt for monitoring respiration rate, waveform and amplitude. Can be worn either thoracically or abdominally, over clothing.

Blood Volume Pulse (BVP) SA9308M or EKG Sensor T9306M - BVP sensor is a blood volume pulse detection sensor (otherwise known as a PPG sensor) housed in a small finger worn package, to measure heart rate & provide BVP amplitude, BVP waveform, HR and Heart rate variability feedback. EKG sensor is a pre-amplified electrocardiograph sensor, for directly measuring heart electrical activity. Connects via extender cables for a single channel hook up.

• Procomp 5 System
• Choice of BVP or EKG Sensor
• GSR Sensor
• Respiration Sensor

Manuals and Data Sheets

Procomp5 Hardware Manual

BioGraph Infiniti 360 Suite User Manual

Getting Started with Biograph Infiniti Software

System Requirements

View Computer Requirements for Thought Technology software (opens in a new browser tab)

Warranty

1 Year manufacturer warranty.
