Thought Technology Neurofeedback Expert System Bundle

Description

Get the most out of your neurofeedback protocols by adding classic biofeedback sensors with 2 EEG sensors, a pIR HEG headset and the most powerful multimedia software available.

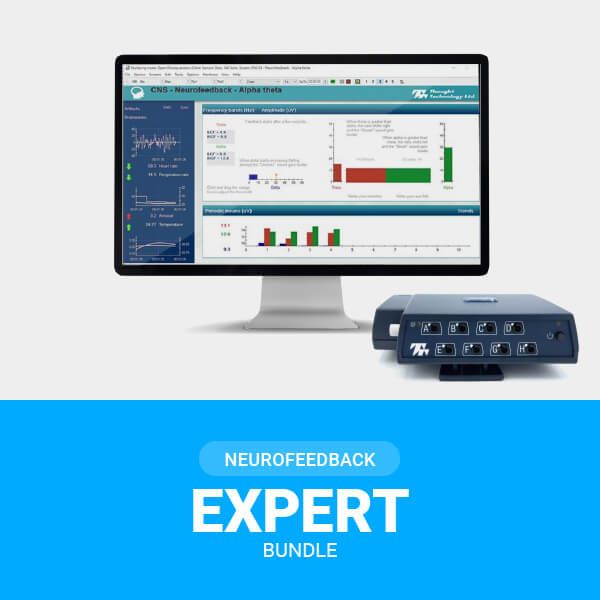

Thought Technology's top of the line neurofeedback system includes the versatile 8 channel ProComp Infiniti device with 2 EEG sensors, pIR HEG and key physiological sensors, including skin conductance, peripheral temperature, muscle tension, heart rate (from finger pulse or EKG), and respiration. With BioGraph Infiniti and the 360 suite, you can incorporate classical biofeedback or heart rate variability training to your neurofeedback protocols to get the broadest physiological perspective on the market. This complete system is the wise choice for universities, hospitals and private clinics who want to have the widest selection of psychophysiological tools.

Bundles Comparison Sheet (opens in new tab).

What’s Included?

Encoder

ProComp Infiniti Encoder T7500M - 8 Channel - The ProComp Infiniti is an 8 channel, multi-modality encoder which connects to your Windows desktop or laptop PC via a USB port and offers all the power and flexibility you need for real-time, computerized biofeedback and data acquisition in any clinical or research setting. It can also store data on a Compact Flash memory card, for uploading later to the PC, or use an optional long-range compact flash telemetry module to offer a wide range of recording options.

A full selection of physiological sensors, including EKG and blood volume pulse (heart rate), respiration belt, EMG (muscle tension), skin conductance, temperature, brainwaves, and forehead temperature allows you to take full advantage of all the tools provided by the 360 Suite.

The first two sensor channels provide ultimate signal fidelity (2048 samples per second) for viewing RAW EEG, EMG, EKG, and BVP signals. The remaining six channels (256 samples/sec) can be used with any combination of sensors, including EEG, EKG, skin conductance, heart rate, blood volume pulse, respiration and passive infrared HEG. ProComp Infiniti offers internal, user-activated calibration to ensure that you can always obtain the highest quality signal, without the costly downtime associated with factory re-calibration.

In short, the ProComp Infiniti covers the full range of objective physiological signals used in clinical observation and biofeedback.

Software

BioGraph Infiniti Software - BioGraph Infiniti Software is the core of all our Biofeedback and Psychophysiology products. It provides a multimedia rich graphical experience, while capturing and analyzing raw data. It also includes all the features and functions required to run our specialized application Suites.

Suites

360 Suite - The suite combines classic physiological biofeedback (arousal and peripheral temperature) with heart rate variability training (HRV) and neurofeedback protocols (EEG biofeedback) into one integrated package. The suite’s broad selection of tools includes:

Specialized physiological assessments
Self-regulation training screens
Biofeedback assisted relaxation therapy sessions

Sensors

Skin Conductance Sensor SA9309M - The Skin Conductance sensor measures the galvanic skin response, and is normally connected to the fingers or toes. Includes two finger bands.

Temperature Sensor SA9310M - The Temperature sensor measures skin surface temperature between 10°C – 45°C (50°F - 115°F ). It is supplied with a self adhering band for easy finger placement.

Respiration Sensor SA9311M - Respiration Sensor includes a sensitive and repeatable girth sensor using an easy fitting high durability latex rubber band fixed with self-adhering belt for monitoring respiration rate, waveform and amplitude. Can be worn either thoracically or abdominally, over clothing.

Blood Volume Pulse (BVP) SA9308M or EKG Sensor T9306M - BVP sensor is a blood volume pulse detection sensor (otherwise known as a PPG sensor) housed in a small finger worn package, to measure heart rate & provide BVP amplitude, BVP waveform, HR and Heart rate variability feedback. EKG sensor is a pre-amplified electrocardiograph sensor, for directly measuring heart electrical activity. Connects via extender cables for a single channel hook up.

EMG MyoScan Sensor T9503M - EMG MyoScan is a pre-amplified surface electromyography sensor used with the ProComp Infiniti/ProComp5 Infiniti channels A – B or all FlexComp-Infiniti channels for RAW sEMG. Compatible with Triode electrodes or extender cables for wider placement of electrodes. Range of 0 – 2000 µV.

2x EEG-Z Sensors T9503M - EEG-Z is a pre-amplified electroencephalography sensor with built in impedance checking. Get the ultimate hook up every time with this sensor as it monitors skin impedance (both the reactive and resistive elements) and sensor connection.

TT-pIR HEadGear T2600 - The TT-pIR HEadGear features two highly accurate passive infrared (pIR) sensors in a wide-range, dual configuration providing stable and reliable measurements. The lightweight, ergonomic design provides maximum comfort and an open concept that greatly reduces ambient temperature dependence and stabilization time.

Cables

2x TT-EEG Monopolar Bipolar kits win DIN cables T8760 - Connects to client via replaceable electrodes. Enabling monopolar or bipolar connections is the most versatile option. Electrodes purchased separately.

Sensor Extender Cable T8720M - Extend the placement possibilities of the EMG and EKG electrodes with the shielded, low noise extender cables, available in a number of lengths and configurations. For use with all our devices (including our MyoTrac and U-Control Home trainers), except MyoTrac Infiniti.

Electrodes

Triode Electrodes T3402M - Triode electrodes (100pcs), with standard 2cm spacing of silver silver chloride electrodes, backed with nickel plated brass snaps to prevent corrosion when connected to pre-amplifiers for extended periods.

Uni-Gel Single Electrodes T3425 - UniGel electrodes, pre-gelled single electrodes, for sensitive placements on dry skin. It can be used in place of T3404 single strip electrodes.
