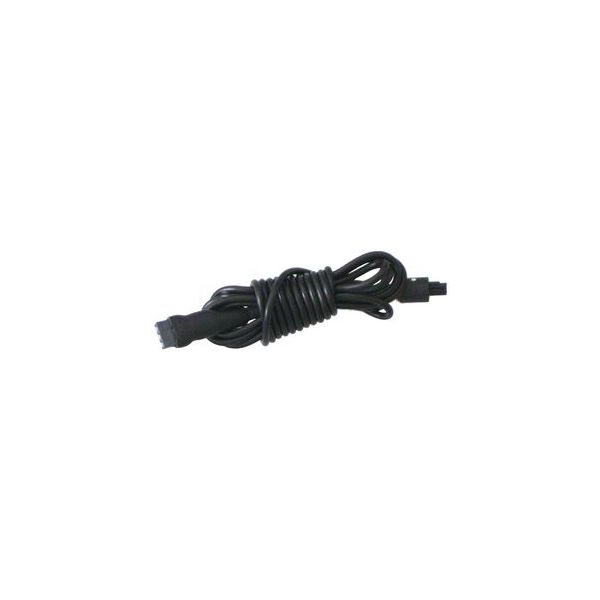

Force Sensor Adapter

Our Part #
TTL T9540
Manufacturer Part #
T9540

In Stock
$70.00
PRODUCT BRAND
LOYALTY REWARDS
Share the love! Get instant store wide discounts just for signing in
GET FINANCING
PayPal CREDIT
Get 6 months to pay on $99 or more

Measures force in one axis and displays output in BioGraph Infiniti virtual channel for force sensor as pounds force.

For use with Procomp Infiniti or Flexcomp Infiniti systems.
Write Your Own Review
You're reviewing:Force Sensor Adapter
Your Rating
You have submitted no questions.
Ask Your Question
Jot us a note and we’ll get back to you as quickly as possible.

A force sensor is sensitive to load applied to a small area of its surface. Force sensors are available in a number of maximum load ratings for example 10lbs and 50lbs. When connected to a person or object they sense changes in the applied pressure. The sensor plugs into the adapter which in turn plugs into the encoder.

A force sensor converts the load applied to a new value, as the load changes the value corresponding to that load changes with it. This raw value can be transformed into a meaningful calibrated value in the software by using the linear transform virtual channel. This linear transform takes the minimum and maximum value and converts it to the min-max output values corresponding to the positions (e.g. -119 to 72 becomes 0 to 10lbs).

Force sensor adapter - sensors sold separately.

This adapter requires force sensors and the Ergonomics Suite for the Procomp Infiniti Systems.

Specifications

  • Sensor Resistive Range: 1Kohm - 1.4 Mohm (native Infiniti modes)
  • Output Voltage Transfer Function: Vout = [301Kohm/(Rfs + 575Kohm)] * Vs where Rfs is the resistance of force sensor in Kohms
  • Supply Voltage: (Vs) = 7.26V
  • Current Consumption: <1mA @ 7.26V nominal
  • Resistance to Volgage Accuracy: +/- 1%
  • Length: ~60" ( 153cm )
  • Weight: ~10g
