DIN EKG/EMG/EEG Snap Leads - 60 inch - 5 Lead Kit
- 1.5mm DIN connectors with snap-style receptacles
- 60 inch lead wires
- Molded strain-reliefs extend cable life
- 5 leads. AHA/AAMI. Red, black, white, green, brown
- Buy 3 for $43.20 each and save 4%
- Buy 6 for $42.30 each and save 6%
- Buy 12 for $41.40 each and save 8%
- Buy 24 for $40.50 each and save 10%
EMG/EEG/ECG leads, features MedSafe 1.5mm (.060) DIN connectors with snap style receptacles. 60 inch length leads, 5 per package. AHA/ AAMI standard colors for 5 lead placement. Colors Red, Black, White, Green and Brown.

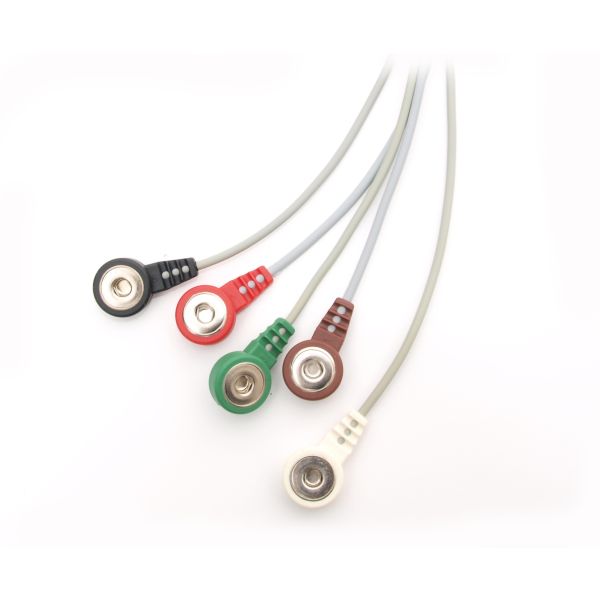

Snap - Low profile, insert molded Santoprene® (TPE) snap leads offer secure attachment to snap electrodes. Classic teardrop design reduces tangling and increases patient comfort.
Strain Relief - Uniquely designed, molded Santoprene® strain reliefs are designed to extend life expectancy of leads with improved flexibility.
Leadwire - Latex-free Santoprene® insulation is impervious to most cleaning solvents and can be sterilized using most common methods: gamma irradiation and EtO. These unshielded leadwires features 65-strand conductor, Santoprene® jacket for increased flexibility and flex life. By using the same material for molding flex reliefs and in the jacket, the maximum bond is achieved between components.
Socket - Recessed lead wire sockets are molded of Santoprene® over a gold plated 1.5mm BeCu spring contact and meet the requirements of DIN 42-802 and ANSI/AAMI EC53 specifications.
Santoprene® rubber, which is latex free, is compatible with most cleaning solvents and can be sterilized using most common methods: gamma irradiation and EtO.
are any of these radiotranslcent??1 answer
These are not
We're an oem and would like to use this cable in a test fixture. Can you tell me what type and size of panel mount socket or receptacle to order for this cable to plug into?
The cable is a standard 1.5mm DIN socket style.
Color coding indicates the part of the body where leads are attached. AHA/ AAMI (American Hospital Association/Association for the Advancement of Medical Instrumentation) is used in the U.S., while IEC (International Electrotechnical Commission) is used in Europe and other parts of the world.
The table below shows the color coding standards for both AHA/AAMI and the IEC standards.
|Left Arm||Black - LA||Yellow - L|
|Right Arm||White - RA||Red - R|
|Left Leg||Red - LL||Green - F|
|Right Leg||Green - RL||Black - N|
|Chest||Brown - C||White - C|
|Chest position V4||Blue - V4|
|Chest position V5||Orange - V5|
AHA/AAMI and the IEC Cables sets we offer
|3 Leads||IEC||R||F||L||40 Inch||BMI TDE209|
|3 Leads||AHA/AAMI||RA||LL||LA||24 Inch||BMI TDE205|
|3 Leads||AHA/AAMI||RA||LL||LA||40 Inch||BMI TDE208|
|3 Leads||AHA/AAMI||RA||LL||LA||60 Inch||BMI TDE211|
|5 Leads||AHA/AAMI||RA||LL||LA||RL||C||24 Inch||BMI TDE204|
|5 Leads||AHA/AAMI||RA||LL||LA||RL||C||40 Inch||BMI TDE210|
|5 Leads||AHA/AAMI||RA||LL||LA||RL||C||60 Inch||BMI TDE213|
If you would like a custom cable kit or other lengths please contact us.
