Electro-Cap System II for QEEG

The Electro-Cap System makes QEEG preparation fast and easy. No individual electrode placements. No more plugging in individual electrodes. Electro-Cap System I comes with all of the basic accessories required for preparation of quantitative EEG, 2 cap sizes and extra supplies. Lexicor / Neurofield Style EEG caps require Ear Lead Attachments.

Electro-Caps are an EEG electrode application technique. They are made of an elastic spandex-type fabric with recessed, pure tin electrodes attached to the fabric. The electrodes are positioned to the International 10-20 method of electrode placement.

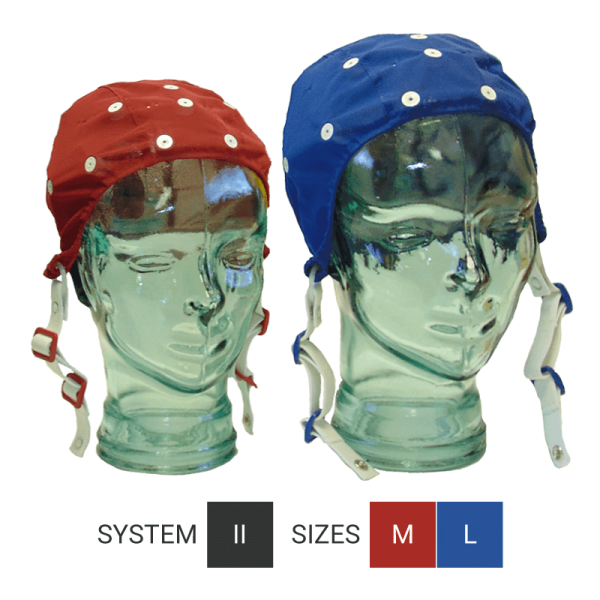

The Electro-cap System II includes a medium and large cap. The medium Electro-Cap that is included with the Electro-cap System I will fit approximately 65% of all patients over the age of 5.

Electro-Cap Styles

• Standard - Utilizes straps that can be used with a chin strap or body harness (both sold seperately). More commonly used when movement is likely during procedure (i.e. sleep study).
• Surgicial - Utilizes elastic band around the rim of the cap. NO straps. More commonly used when movement of patient is not a concern during procedure.

Ear Lead Attachments

• No - External ear clips will need to be used (sold separately).
• Yes - Ear Leads are built into cap and can connected via pin plug. Ear drop clips required (sold separately).

Does your system require ear lead attachments?

• Mitsar - No
• Brainmaster - No
• Neurofield Q20 - Yes
• Lexicor - Yes
• Other systems? Please contact us if you have questions.

If you are not sure of the Electro-cap configuration that you need please contact us.

For use with Mindset, Discovery24, Lexicor,Deymed, Mitsar and other 19, 21 and 24 channel EEG systems.

Electro-Cap Quick Facts

Use only Ivory or Palmolive liquid detergent for washing your cap. Other soaps and detergents can leave a residue on the electrode surface, causing artifacts and/or impedance problems.

Use only ECI Electro-Gel. Other types of paste and gel can cause artifacts and/or high impedance.

Ensure that all accessory electrodes are the same metal as the electrodes in your cap. All standard ELectro-Caps have tin electrodes. Use of accessory electrodes of a different metal can cause a myriad of problems.

Keep all gel, paste, and moisture away from the connector that plugs into your equipment.

• Medium Cap
• Large Cap
• Electrode Board Adapter
• Body Harness (m)
• Quick Insert Electrode (2)
• Ear Electrodes (2 pr.)
• Disposable Sponge Disks (1 pk. 100)
• Needle/Syringe Kit(2)
• Electro-Gel (2-16 oz.)
• Special Head Measuring Tape
• Ivory Liquid (1-14 oz.)
• Instruction Manual
• Instruction Video
• 90 day warranty
