Monopolar / Bipolar EEG Electrode Kit - Thought Technology
- Cables for both Mono & Bipolar EEG placements
- 2 gold cup cables, 2 gold ear clip cables
- EEG extender DIN cable included
- For use with EEG Flex/Pro, EEG-Z sensors

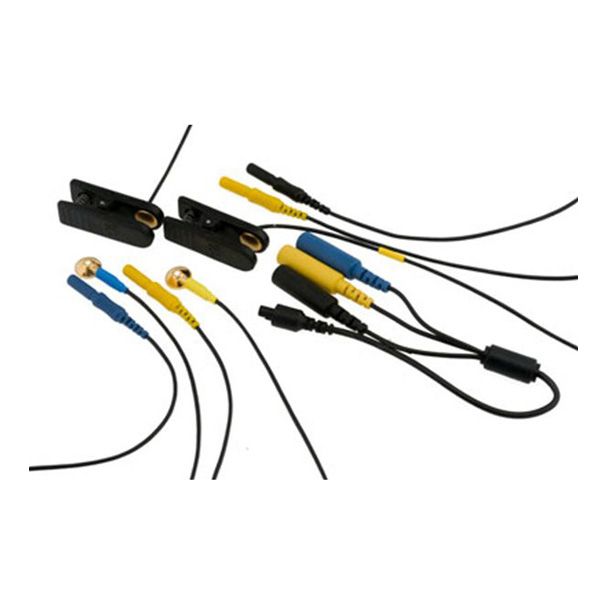

The T8750 EEG Electrode kit has DIN style EEG leads with DIN cable for the Thought Technology EEG Sensors. Includes cables for both Monopolar and Bipolar EEG placements. Includes (2) Gold Ear Clips and (2) Cup sensors - 22.5" in length and T8740 DIN Cable.The TT-EEG Monopolar Bipolar Kit with DIN Cable T8750 is for use with the EEG Flex/Pro (SA9305M) and EEG-Z (SA9305Z) sensors.
Insert the extender cable in the sensor head, making sure to align the guiding dot on the cable connector with the groove on the sensor head.
Generously fill the electrode cups with EEG conductive paste. Apply electrodes on subject, respecting the polarity as shown in the corresponding diagram.
|Monopolar Placement||Bipolar Placement|
