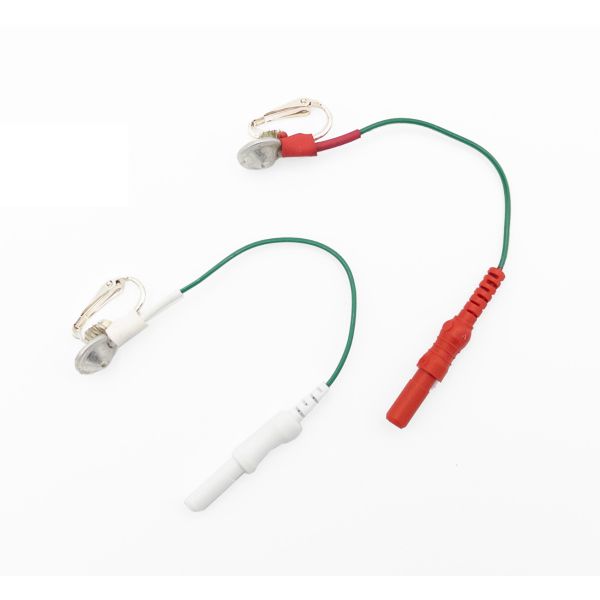

Electro-Cap 3 1/2 inch DIN Ear-Clip Electrodes (new style)

Electro-Cap 3 1/2" DIN Ear-Clips (Ear Drop Clips) are pure tin ear electrodes designed for Electro-Caps with built-in ear leads. Each short lead terminates in a 1.5 mm DIN plug that snaps directly into the cap's ear lead connector.

The compact 3 1/2" lead keeps the ear clips close to the cap, reducing cable clutter around the head while still allowing enough flexibility for comfortable placement on the earlobe. These ear clips are typically used with Lexicor-style Electro-Caps and other QEEG configurations that specify dedicated ear lead attachments.

Pure tin electrode surfaces provide consistent conductivity for routine EEG and QEEG ear reference or linked-ear montages. Supplied as a pair, they're an easy drop-in replacement or upgrade for existing Electro-Cap ear clip setups.

Electro-Cap 3 1/2" DIN Ear Clips Key Benefits

• Designed for Electro-Caps with ear leads so ear references plug directly into the cap
• Short 3 1/2" lead minimizes cable slack and keeps wiring close to the cap
• Pure tin electrode cups support stable impedances and reliable EEG/QEEG ear references
• Standard 1.5 mm DIN plug for straightforward connection to compatible Electro-Cap systems
• Supplied as a pair for convenient A1/A2 or linked-ear configurations

Technical Specifications

• Electrode type: Ear clip EEG electrodes (pair)
• Electrode material: Pure tin
• Lead length: 3 1/2" (≈9 cm) short ear lead
• Connector: 1.5 mm DIN plug for Electro-Cap ear lead sockets
• Package: 2 ear clips per pack
