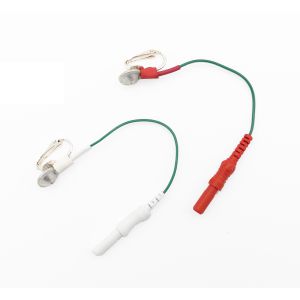

Electro-Cap Tin Ear-Clip Electrodes - 9 mm (New Style)

Electro-Cap Tin Ear Electrodes come as a matched pair, each with a 48 inch lead wire and a 1.5 mm DIN connector. They’re compatible with all Electro-Cap sizes and other EEG systems that use tin ear electrodes for linked-ears or reference recordings.

A spring-clip back, covered with plastic for comfort, holds the cup securely on the earlobe while helping maintain stable impedances during EEG sessions. The 48 inch lead length provides enough reach from the ears to the cap or headbox without creating unnecessary cable tangle around the patient.

The 9 mm pure tin cups provide consistent conductivity for routine EEG and neurofeedback applications, including ear reference and A1/A2 montages. The standard 1.5 mm touch-proof DIN connector allows easy integration with Electro-Caps and most EEG amplifiers that accept DIN-style plugs.

Electro-Cap Tin Ear Electrodes Key Benefits

• Pure tin earclip cups provide reliable conductivity for ear reference and linked-ear montages
• Plastic-covered spring clip offers secure placement on the earlobe with improved patient comfort
• 48 inch lead wire gives ample length from ear to cap or headbox while limiting cable clutter
• Standard 1.5 mm DIN connector is compatible with Electro-Caps and most DIN-style EEG systems
• Supplied as a pair (2/pkg) for convenient replacement of both ear references at once

Technical Specifications

• Electrode type: Earclip cup EEG electrodes (pair)
• Cup material: Pure tin
• Cup diameter: 9 mm
• Lead length: 48" (≈122 cm)
• Connector: 1.5 mm touch-proof DIN plug
• Compatibility: Electro-Caps, Smart Brain Games, and EEG systems that accept tin ear electrodes with 1.5 mm DIN connectors
• Package: 2 ear electrodes per pack
