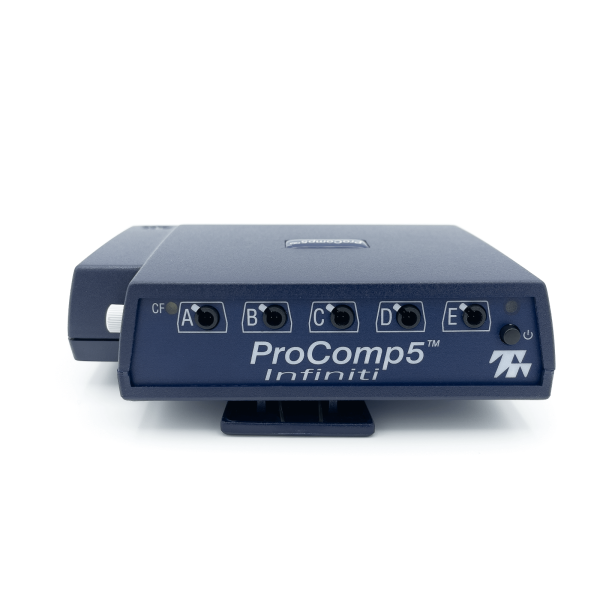

ProComp5 Infiniti - 5 Channel System

The ProComp5 Infiniti measures up to five channels of your choice for both neurofeedback and biofeedback training.

The Procomp5 with v6.0 Infiniti software is a versatile five channel system. The first two sensor channels provide ultimate signal fidelity for viewing raw EEG, SEMG, EKG and HR/BVP signals (2048 samples per second), while the remaining three channels sample data at 256 samples/second for slower signals such as respiration, temperature, GSR, force, etc.

ProComp5 Infiniti is housed in an ergonomic case and requires only a USB port to connect to any PC. ProComp5 Infiniti has the identical inputs as ProComp Infiniti 8 channel system, but omits the last 3 channels.

Not only can ProComp5 Infiniti capture data in real time by connecting directly to the PC via its fiber-optic cable, but it can also store data on an optional Compact Flash memory card for uploading later to the PC, or use optional long-range compact flash module telemetry.

Unlike competitive equipment, all channels can be used with any combination of sensors, including EEG, EKG, RMS SEMG, Skin Conductance, Heart Rate, Blood Volume Pulse, Respiration, Goniometer, Force, Inclinometer, Torsiometer and Voltage Input.

The ProComp5 hardware comes with the BioGraph Infiniti Software and your choice of either the 360 Suite or Rehab Suite.

ProComp Encoder Comparison

• ProComp5 5 Channel encoder
• BioGraph Infiniti Software
• BioGraph Infiniti 360 Suite
• Developer Tools software
• 15 foot long Fiber Optic cable
• Built in Compact Flash Recorder (Flash card optional)
• TT-USB adapter
• USB cable
• Protective carrying case

Manuals and Data Sheets

Procomp5 Hardware Manual

360 Suite User Manual

Getting Started with Biograph Infiniti Software

System Requirements

View Computer Requirements for Thought Technology software (opens in a new browser tab)

Warranty

1 Year manufacturer warranty.

Specifications

• Fiber Optic Cable to USB (ITT-USB interface) or COM port(Pro-SB)
• Impedance check (with EEG-Z sensor)
• Self-calibration: Yes
• Fast Channels: 2 channels, 2048 samples/sec DC-45Hz
• Slow channels: 3 channels 256 samples/sec DC-8Hz (shared with fast channels)
• Power Source: 4 1.5V AA Battery (20+ hours)
• Size (approx.) 130mm x 95mm x 37mm (5.1 x 3.7 x 1.5)
• Weight (approx.) 200g (7oz)
• Power Source 4AA batteries, single use alkaline or NiMh Rechargeable
• Supply Voltage 3.6V 6.5V (fiber optic), minimum 4.0V (Compact Flash)
• Battery Life, Alkaline cells 30h typical, 20h minimum
• Low-battery warning 20 30 minutes of battery life remaining
• Sensor supply voltage 7.260V 2mV
• ADC output 14bits
• Full-scale input range, DC 2.8V1.696V
• LSB magnitude 207uV
• Encoder channel bandwidth (3dB) and sample rate
  • DC 512Hz @ 2048 samples/second
  • DC 64Hz @ 256 samples/second
  • DC 64Hz @ 200 samples/second
  • DC 8Hz @ 32 samples/second
  • DC 8Hz @ 20 samples/second
• Anti-aliasing Filter 5th order Butterworth
• Alias rejection 30dB typical
• DC gain accuracy 0.5% (initial, or after self-calibration)
• DC offset 3LSB (initial, or after self-calibration)
• Overall system accuracy 5%
• Offset drift, calibration temperature 10C 5 LSB
• Encoder noise 150uV RMS, 1mV p-p typical, offset removed

General Requirements for Safety Compliant: UL60601-1 (R2003), CSA C22.2 601.1-M90 (R2005)

NOTE: ProComp5 Infiniti and its Sensor Heads and sensors are sensitive electronic instruments and should be handled as such. Be especially careful to avoid both pulling on the sensor cables and leads or getting moisture and gel on the sensor snaps. If necessary, wipe the surface with a damp cloth or use a moistened Q-tip to remove gel from inside the sensor snaps. Wipe with a dry cloth.
